PV-Live

Description of the station network from Lorenz, E. (2021):

"The irradiance measurement network set up in the project PV-Live consists of 40 measurement stations in the control area of the transmission system operator TransnetBW. With their rather even distribution a good representation of the mean irradiance conditions in the grid area is achieved. The distance between neighbouring measurement stations ranges between 15 km and 35 km. Details of the station locations, including coordinates and heights, are given in Table 1. Most stations are installed close to PV power plants. A few of them are located at outposts and buildings of TransnetBW, public utilities and other station partners.

A PV-Live measurement station ... consists of a SMP10 thermopile pyranometer (Kipp and Zonen, 2020), which measures GHI, and three Mencke & Tegtmeyer Si sensors (silicon photovoltaic reference cells; Ingenieurbüro Mencke & Tegtmeyer GmbH, 2020), which measure GTI. The three Si sensors are oriented towards east (90°), south (180°) and west (270°) and have tilt angles of 25°. Besides irradiance also temperature is measured by the pyranometer as well as the silicon sensors.

The SMP10 pyranometers are ISO-9060 (International Organization for Standardization, 2018) spectrally flat Class A sensors. They are not equipped with ventilation units, because these would have caused considerable additional costs and an increase in electricity consumption."

References:


The 40 stations in the network are:

Loading...
Loading...
Loading...

And a nice map, just to get a sense of the distribution of the stations:

Loading...

Data availability

"The PV-Live irradiance and temperature measurements ... are made publicly available on the open-access repository Zenodo (European Organization For Nuclear Research and OpenAIRE, 2013) through the DOI: Dittmann et al. (2025) (Dittmann et al., 2021), starting with data of September 2020. The data set is extended by adding data of the previous month on a monthly basis. All measurement values are provided with quality flags as described in Section 6.

Near real-time availability is an important aspect of the PV-Live network. Measurements are taken once per second and stored as oneminute mean values. Near real-time data transfer of these minute values is achieved by using the mobile phone network to establish connections of the measurement stations with Fraunhofer ISE. In addition, the measurements are stored in an internal memory. In case a measurement station is temporarily unavailable, the data is completed automatically, when the connection is re-established."


Below is an example of how to retrieve time series irradiance data from the PV-Live network.

Source
Loading...

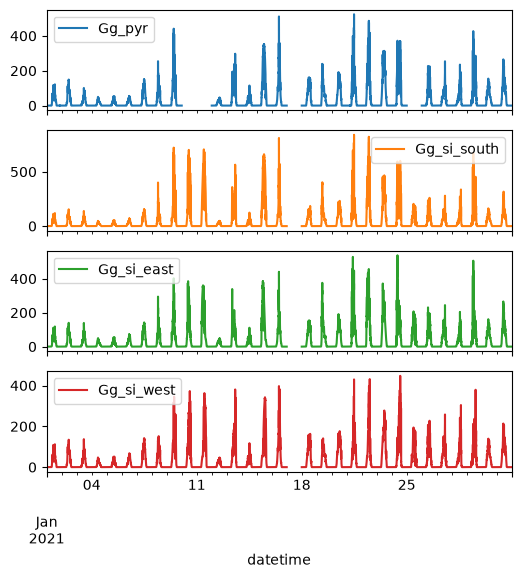

Visualize measurement data

<Figure size 600x600 with 4 Axes>

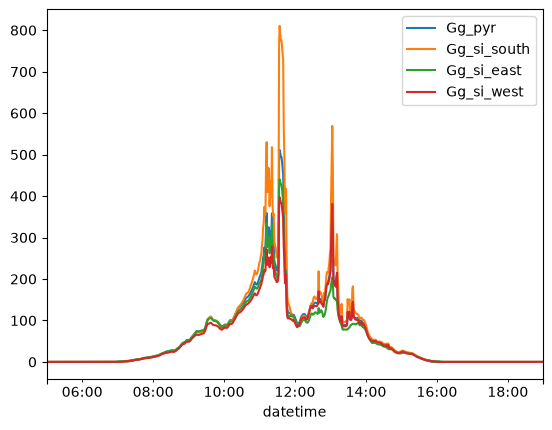

Visualize one day of measurement data

<Figure size 640x480 with 1 Axes>

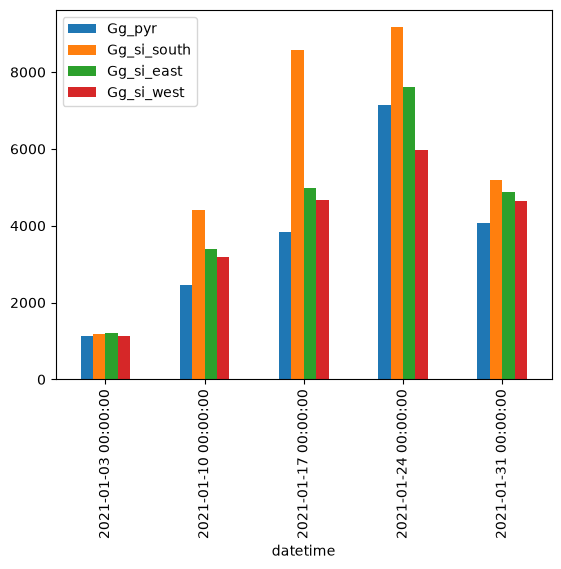

Weekly incident irradiation

<Axes: xlabel='datetime'>
<Figure size 640x480 with 1 Axes>
References
  1. Lorenz, E., Guthke, P., Dittmann, A., Holland, N., Herzberg, W., Karalus, S., Müller, B., Braun, C., Heydenreich, W., & Saint-Drenan, Y.-M. (2022). High resolution measurement network of global horizontal and tilted solar irradiance in southern Germany with a new quality control scheme. Solar Energy, 231, 593–606. 10.1016/j.solener.2021.11.023
  2. Lorenz, E., Holland, N., Dittmann, A., Herzberg, W., Karalus, S., Heydenreich, W., Braun, C., Guthke, P., & Semmig, A. (2020). Minute Resolution Measurement Network for Global Horizontal and Tilted Solar Irradiance for a Transmission System Control Area in Southern Germany. 37th European Photovoltaic Solar Energy Conference and Exhibition; 1250-1255. 10.4229/EUPVSEC20202020-5BO.7.4
  3. Dittmann, A., Dinger, F., Herzberg, W., Holland, N., Karalus, S., Braun, C., Zähringer, R., Heydenreich, W., & Lorenz, E. (2022). PV-Live dataset - Measurements of global horizontal and tilted solar irradiance. Zenodo. 10.5281/ZENODO.7311989
  4. Dittmann, A., Dinger, F., Herzberg, W., Holland, N., Karalus, S., Braun, C., Zähringer, R., Heydenreich, W., & Lorenz, E. (2025). PV-Live dataset - Measurements of global horizontal and tilted solar irradiance. Zenodo. 10.5281/ZENODO.4036728
